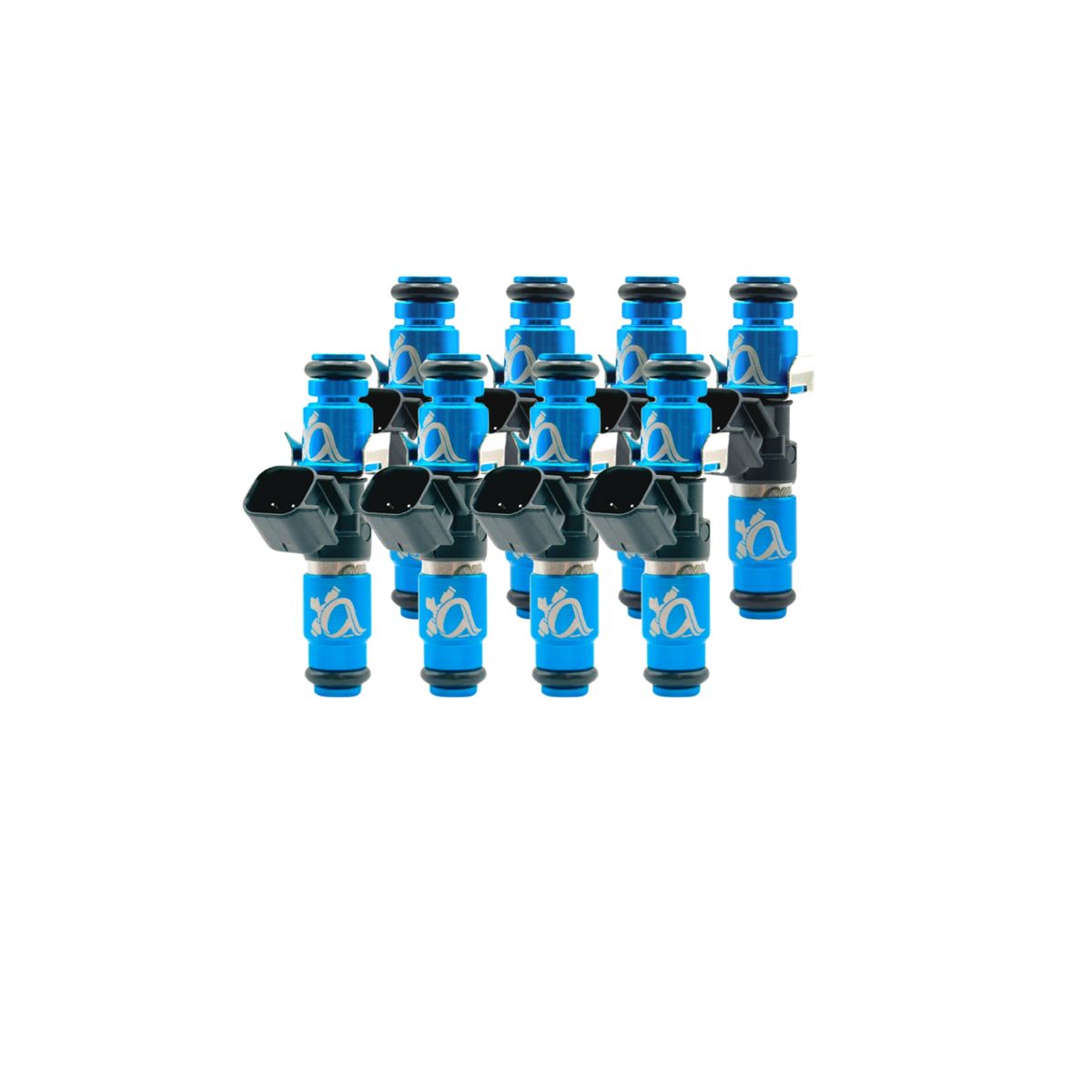

Ai-2600cc Chevrolet Fuel Injectors
Precision-characterized 2600cc injectors for Chevrolet applications. Dynamically tested, matched for flow consistency and repeatability, and shipped with a serialized flow sheet. ECU-formatted characterization data is available for download.
Flow matched setMatched for flow consistency and repeatability.
Serialized flow sheetStatic and dynamic flow for every injector.
Injector dataECU-formatted characterization data, available for download.
Tech supportFrom the team that matched your set.
Alpha Injection 2600cc. Featuring compatibility with Methanol/Ethanol/All Known Hydrocarbon Fuels. If you need excellent drivability/ Linearity the AI-2600 will provide this.
EV6 USCAR Electrical Connector (Gen2)
Tuning Data: > Injector data <
Compatible with: Gasoline, Ethanol, C85-M1-M5
| Part number | Ai-2600cc |
| Platform | Chevrolet |
| Rated flow | 2600 cc/min at 3 bar (43.5 psi) |
| Characterization | Offset (dead time) 6 to 20 V, short-pulse behavior, dynamic flow |
| Matching | Flow matched as a set, serialized per injector |
| Documentation | Serialized flow sheet showing static and dynamic flow for each injector |
| Injector data | Available for download |
| Origin | Made in the USA |
Characterization tables for this part number are available for download, formatted for the ECU you tune on.
Open injector data
